ENGINES THAT RUN FROM BODY HEAT...





KS90 Polished LTD

(Kit or Assembled)






KONTAX KS90 POLISHED STIRLING ENGINE


Plates made from polished stainless steel
Runs with direct sunlight
Ultra Low temperature difference Stirling Engine
Can run from the heat of your hand
Runs on heat sources such as set top box, cup of coffee
Will even run on ice
Runs on surprisingly little temperature difference





EXTREMELY LOW FRICTION GRAPHITE PISTON
INGENIOUS SELF-LUBRICATING PISTON
PROVEN GLASS/GRAPHITE COMBINATION
PRECISION CLEAR BOROSILICATE GLASS CYLINDER
(WE WERE THE FIRST TO USE THIS)
ULTRA LOW FRICTION THROUGHOUT


FULLY MACHINED BRASS + ALUMINIUM WHEEL
INTEGRAL FLYWHEEL BALANCING


ULTRA LOW TEMPERATURE DIFFERENCE ENGINE
BEST PERFORMING LTD ENGINE ON THE MARKET
RUNS ON A WARM HAND OR HOT WATER
RUNS BACKWARDS WHEN PLACED ON ICE
KONTAX GUARANTEED TO RUN


SUPER-FLAT OPTIMISED CHAMBER
ALL DIMENSIONS CALCULATED FOR OPTIMUM
PERFORMANCE
HOLLOW BRASS PILLARS, PROVIDING A SURPRISING
HIGH THERMAL INSULATION
REGENERATING DISPLACER PISTON


NO SCREWS PROTRUDING ON TOP/BOTTOM PLATE
PROVEN LONG LASTING DESIGN
ELEGANT NO COMPROMISE DESIGN
BRITISH DESIGNED AND MADE

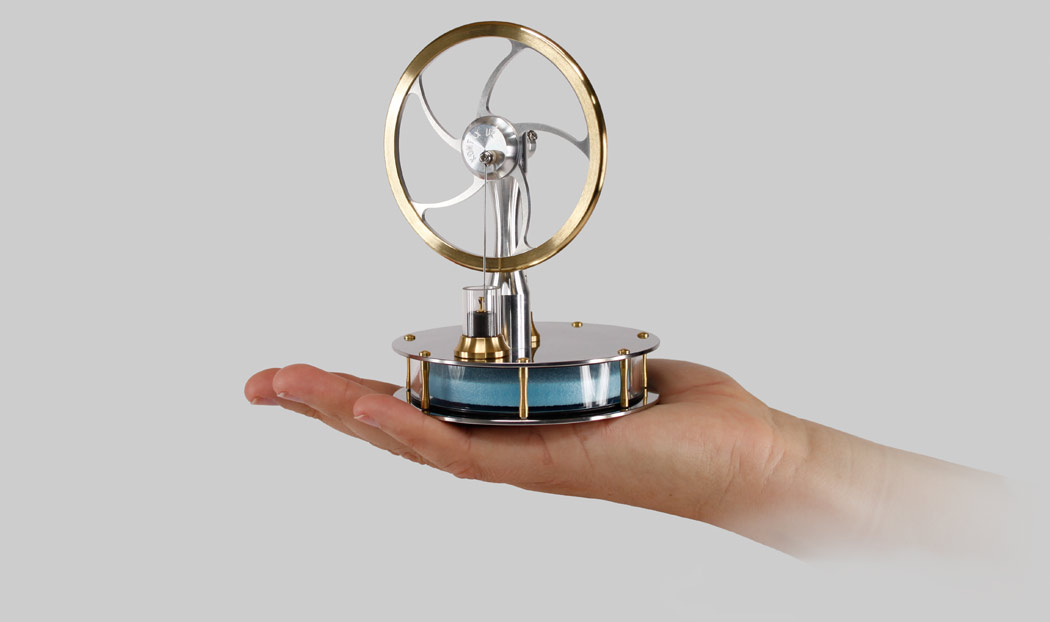

(KS90 polished shown in image above)


PRECISION STAINLESS STEEL DISPLACER ROD
MICRONS ACCURACY POWER PISTON
NO SQUEAKING, QUIET DESIGN
AIR SEALED DESIGN
MINIATURE BALL RACE BEARINGS







THE SIMPLE STIRLING ENGINE CONCEPT


What is a Stirling Engine?

Stirling engines convert a small temperature difference into motion. As long as one plate is warmer (about 5c) than the other then the engine will run. It doesn't matter which plate is warmer, as long as the other is cooler. If you reverse the temperature differential, and cool the plate that was warm, and warm the plate that was cool then the engine will run in reverse. The Stirling engine is named after its inventor, Rev. Robert Stirling, who patented his idea in 1816.

How do they work?

Stirling engines work by cyclically heating and cooling the air inside the main chamber. As the air heats up it expands, and as it cools down it contracts. This expansion and contraction drives a small piston which in turn drives the flywheel. The clever thing about Stirling engines is that the mechanism for cycling the heating and cooling of the air is built into the engine in the form of the displacer, which is driven by the flywheel and moves the air from the warm side to the cool side and back again over and over.


Eco-friendly

The Kontax KS90 Low Temperature Differential Stirling Engine is the ultimate eco-friendly device, showing with one spin of the flywheel a clean and simple way of converting waste heat into motion. Because these engines rely on a temperature difference for operation, they will run on almost any source of warmth. Typical heat sources include hot coffee or tea, warm sunlight, CRT monitor, TV digibox and the human hand.


Efficiency

Because Stirling engines have a theoretical 40% greater efficiency than photo-voltaic (PV) panels worldwide energy companies are investigating using them as a way to provide energy in a more sustainable and environmentally friendly way. Such companies use our full range of low temperature engines to demonstrate the principles behind generating electricity using Stirling engines.








ENGINE DETAILS

Airtight seals made with high strength precision screw threads and nitrile O rings
Stainless steel screws (except for piller screws)
Micron precision Borosilicate glass cylinder and Graphite power piston
Low-profile heat insulated chamber pillars, giving a flat bottom and good surface contact with heat source
Both connecting rods are positively located using low friction PEEK and stainless steel screws
All airtight seals are made with high strength precision screw threads and nitrile O rings
Ultra low friction demagnetised and de-greased bearings, NO lubrication required
Fully CNC machined, giving crisp, clean and tidy edges all over
Engine parts ultrasonically cleaned before hand assembly

Stainless steel connecting rods and ball-race bearings
Micron precision Borosilicate glass cylinder
Micron precision Graphite power piston
Aluminium main pillar, hub and spokes
Brass chamber pillars and flywheel rim
Brass gland and cylinder holder

Base plates - 92mm diameter (3.62"), 2mm thick
Displacer - 70mm diameter (2.75"), 8mm thick
Flywheel - 82mm diameter(3.25"), 4mm thick
Power piston - 9.5mm diameter (0.375")
Overall height - 125mm (4.92")






link to manual Download the manual

Price: £100.00 in




FREE worldwide shipping !





Ask us a question



Choose between assembled or kit form




out of stock

Ideal for ages .
To compare by age group click here
Got a gerneral question? Click here to view our FAQ
