ENGINES THAT RUN FROM BODY HEAT...





KS90 blue LTD

(Kit or Assembled)





KONTAX KS90 BLUE STIRLING ENGINE


• Plates made from anodised blue aluminium
• Runs with direct sunlight
Ultra Low temperature difference Stirling Engine

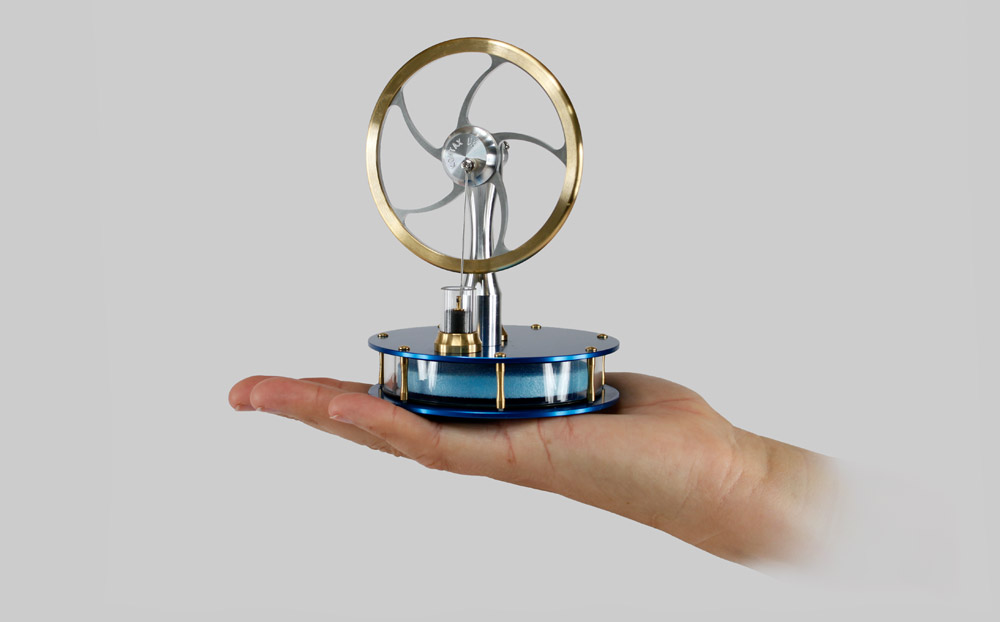

• Can run from the heat of your hand
• Runs on heat sources such as set top box, cup of coffee
• Will even run on ice
• Runs on surprisingly little temperature difference





• EXTREMELY LOW FRICTION GRAPHITE PISTON
• INGENIOUS SELF-LUBRICATING PISTON
• PROVEN GLASS/GRAPHITE COMBINATION
• PRECISION CLEAR BOROSILICATE GLASS CYLINDER
(WE WERE THE FIRST TO USE THIS)
• ULTRA LOW FRICTION THROUGHOUT


• FULLY MACHINED BRASS + ALUMINIUM WHEEL
• INTEGRAL FLYWHEEL BALANCING


• ULTRA LOW TEMPERATURE DIFFERENCE ENGINE
• BEST PERFORMING LTD ENGINE ON THE MARKET
• RUNS ON A WARM HAND OR HOT WATER
• RUNS BACKWARDS WHEN PLACED ON ICE
• KONTAX GUARANTEED TO RUN


• SUPER-FLAT OPTIMISED CHAMBER
• ALL DIMENSIONS CALCULATED FOR OPTIMUM
PERFORMANCE
• HOLLOW BRASS PILLARS, PROVIDING A SURPRISING
HIGH THERMAL INSULATION
• REGENERATING DISPLACER PISTON


• NO SCREWS PROTRUDING ON TOP/BOTTOM PLATE
• PROVEN LONG LASTING DESIGN
• ELEGANT NO COMPROMISE DESIGN
• BRITISH DESIGNED AND MADE
(KS90 polished shown in image above)


• PRECISION STAINLESS STEEL DISPLACER ROD
• MICRONS ACCURACY POWER PISTON
• NO SQUEAKING, QUIET DESIGN
• AIR SEALED DESIGN
• MINIATURE BALL RACE BEARINGS







THE SIMPLE STIRLING ENGINE CONCEPT


What is a Stirling Engine?

Stirling engines convert a small temperature difference into motion. As long as one plate is warmer (about 5°c) than the other then the engine will run. It doesn't matter which plate is warmer, as long as the other is cooler. If you reverse the temperature differential, and cool the plate that was warm, and warm the plate that was cool then the engine will run in reverse. The Stirling engine is named after its inventor, Rev. Robert Stirling, who patented his idea in 1816.

How do they work?

Stirling engines work by cyclically heating and cooling the air inside the main chamber. As the air heats up it expands, and as it cools down it contracts. This expansion and contraction drives a small piston which in turn drives the flywheel. The clever thing about Stirling engines is that the mechanism for cycling the heating and cooling of the air is built into the engine in the form of the displacer, which is driven by the flywheel and moves the air from the warm side to the cool side and back again over and over.


Eco-friendly

The Kontax KS90 Low Temperature Differential Stirling Engine is the ultimate eco-friendly device, showing with one spin of the flywheel a clean and simple way of converting waste heat into motion. Because these engines rely on a temperature difference for operation, they will run on almost any source of warmth. Typical heat sources include hot coffee or tea, warm sunlight, CRT monitor, TV digibox and the human hand.


Efficiency

Because Stirling engines have a theoretical 40% greater efficiency than photo-voltaic (PV) panels worldwide energy companies are investigating using them as a way to provide energy in a more sustainable and environmentally friendly way. Such companies use our full range of low temperature engines to demonstrate the principles behind generating electricity using Stirling engines.








ENGINE DETAILS

• Airtight seals made with high strength precision screw threads and nitrile O rings
• Stainless steel screws (except for piller screws)
• Micron precision Borosilicate glass cylinder and Graphite power piston
• Low-profile heat insulated chamber pillars, giving a flat bottom and good surface contact with heat source
• Both connecting rods are positively located using low friction PEEK and stainless steel screws
• All airtight seals are made with high strength precision screw threads and nitrile O rings
• Ultra low friction demagnetised and de-greased bearings, NO lubrication required
• Fully CNC machined, giving crisp, clean and tidy edges all over
• Engine parts ultrasonically cleaned before hand assembly

• Stainless steel connecting rods and ball-race bearings
• Micron precision Borosilicate glass cylinder
• Micron precision Graphite power piston
• Aluminium main pillar, hub and spokes
• Brass chamber pillars and flywheel rim
• Brass gland and cylinder holder

• Base plates - 92mm diameter (3.62"), 2mm thick
• Displacer - 70mm diameter (2.75"), 8mm thick
• Flywheel - 82mm diameter(3.25"), 4mm thick
• Power piston - 9.5mm diameter (0.375")
• Overall height - 125mm (4.92")






link to manual Download the manual

Price: £96.00 in




FREE worldwide shipping !





Ask us a question



Choose between assembled or kit form




out of stock

Ideal for ages .
